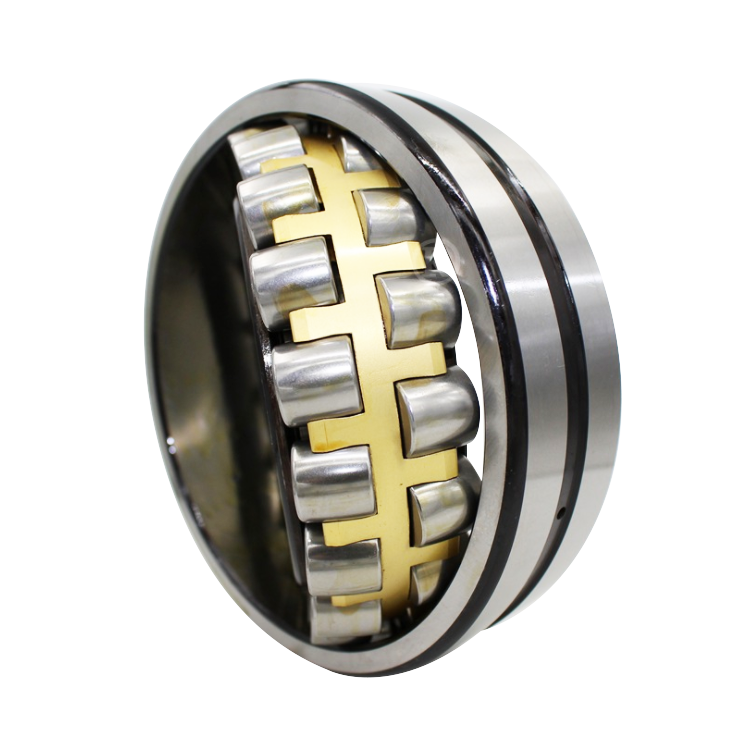

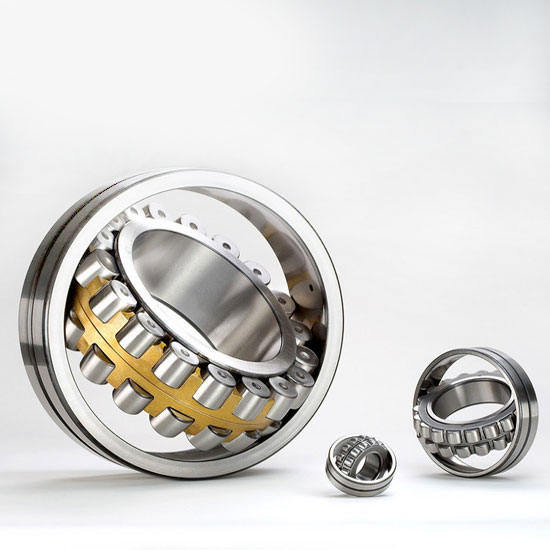

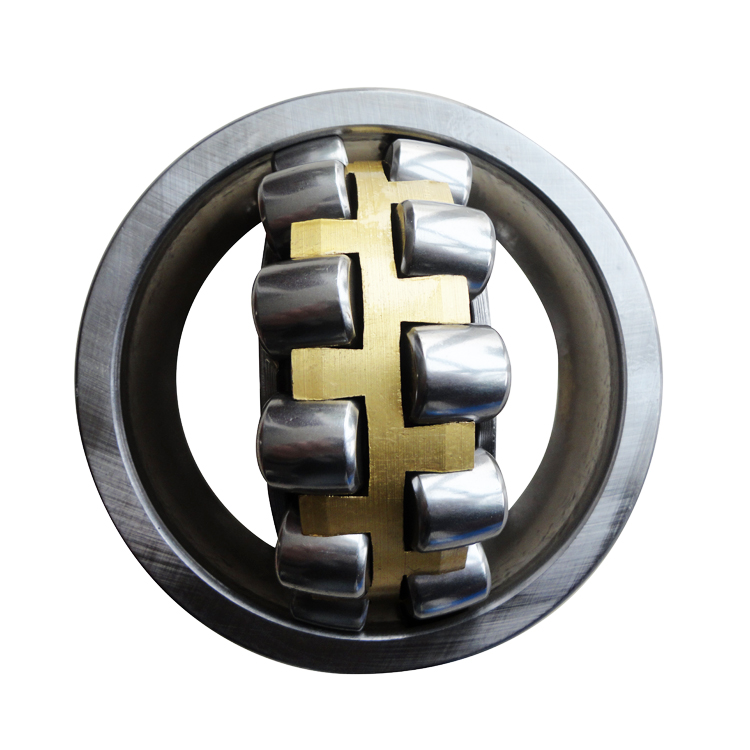

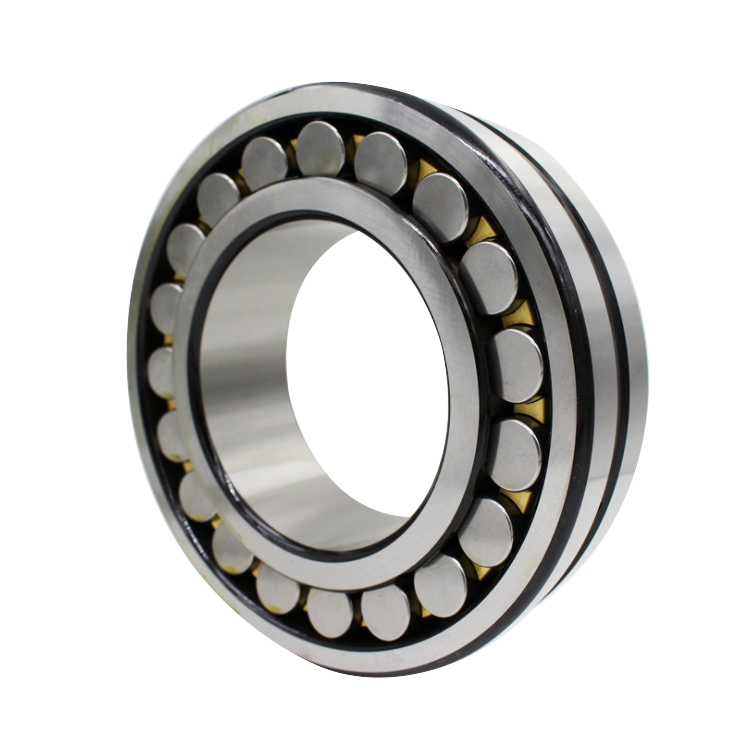

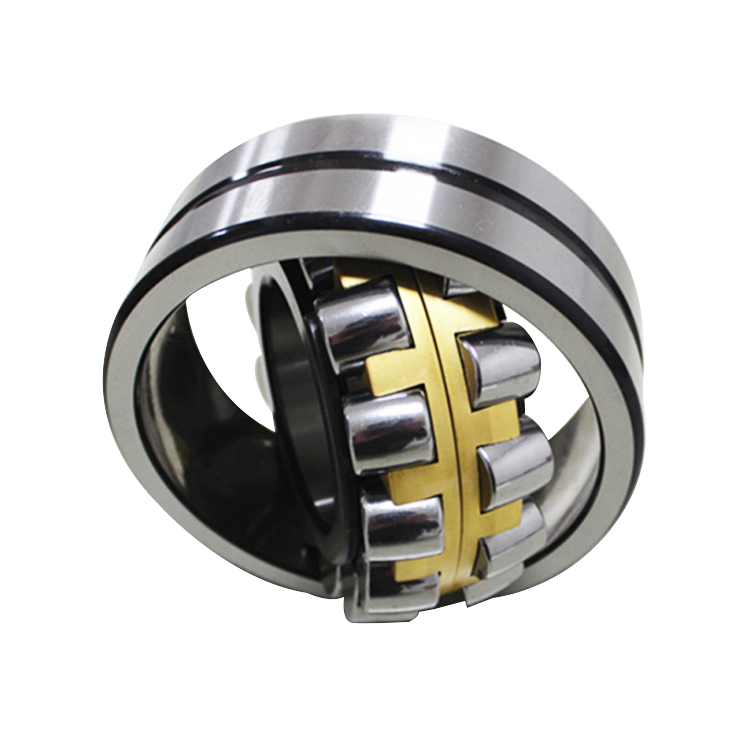

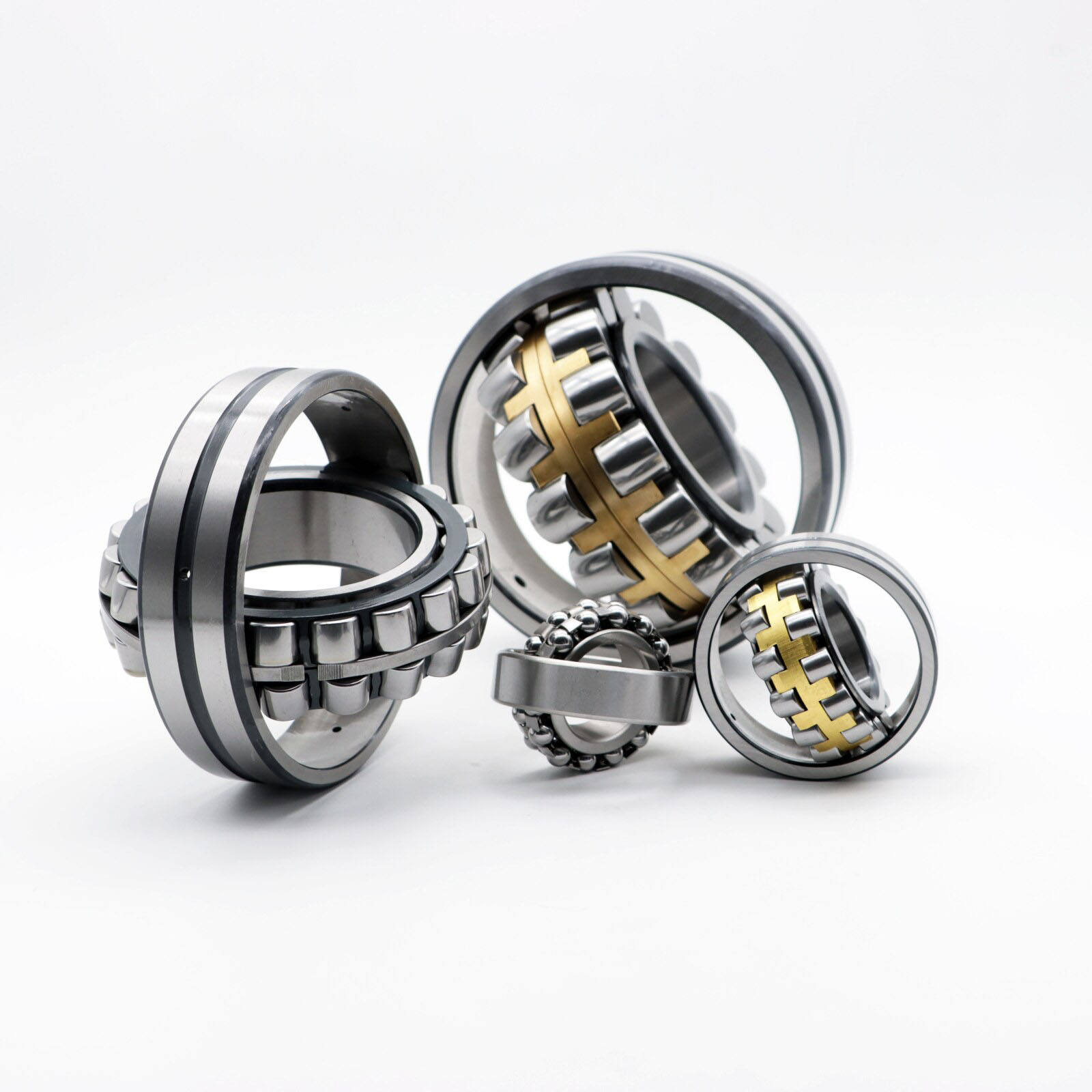

23900 Series Spherical Roller Bearing/Self Aligning Roller Bearings
Short Description:
● Spherical roller bearings have automatic self-aligning performance
● In addition to bearing radial load, it can also bear bidirectional axial load, can not bear pure axial load
● It has good impact resistance
● Suitable for installation error or deflection of the shaft caused by Angle error occasions
I have all the models you need, these are just some of them, please contact us now
| Designation | Principal Dimensions(mm) |
| Basic Load Ratings(KN) | Limited Speed(rpm) | Weight |
| d | D | B | rs min | Dynamic(Cr) | Static(Cor) | Grease | Oil | (kg) |
| 23936 | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 8.21 |
| 23936K | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 7.95 |
| 23936KW33C3 | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 7.95 |
| 23936W33C3 | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 8.21 |
| 23938 | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.6 |
| 23938K | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.34 |
| 23938KW33C3 | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.34 |
| 23938W33C3 | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.6 |
| 23940 | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 12.1 |
| 23940K | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 11.7 |
| 23940KW33C3 | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 11.7 |
| 23940W33C3 | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 12.1 |
| 23944 | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 13.1 |
| 23944K | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 12.7 |
| 23944KW33C3 | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 12.7 |
| 23944W33C3 | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 13.1 |
| 23948 | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 14 |
| 23948K | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 13.6 |
| 23948KW33C3 | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 13.6 |
| 23948W33C3 | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 14 |
| 23952 | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 24 |
| 23952K | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 23.3 |
| 23952KW33C3 | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 23.3 |
| 23952W33C3 | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 24 |
| 23956 | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 26.4 |
| 23956K | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 25.6 |
| 23956KW33C3 | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 25.6 |
| 23956W33C3 | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 26.4 |
| 23960 | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 40 |
| 23960K | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 38.7 |
| 23960KW33C3 | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 38.7 |
| 23960W33C3 | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 40 |
Spherical Roller Bearing Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
