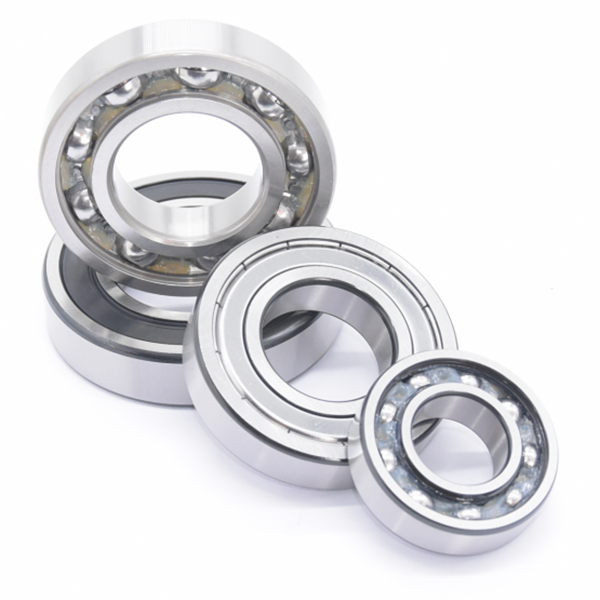

6700 Series Deep Groove Ball Bearings
Short Description:
● 6700 Series Deep groove ball is one of the most widely used rolling bearings.
● Low friction resistance, high speed.
● Simple structure, easy to use.
● Applied to gearbox, instrument and meter, motor, household appliance, internal combustion engine, traffic vehicle, agricultural machinery, construction machinery, construction machinery, roller roller skates, yo-yo ball, etc.
I have all the models you need, these are just some of them, please contact us now
| Bearing Designation | Dimension（mm） |
|
| Basic load ratings (kN) | Speed ratings(rpm) | Weight |
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Kg) |
| 6700 | 10 | 15 | 3 | 0.1 | 1.01 | 0.555 | 3600 | 4200 | 0.0015 |
| 6701 | 12 | 18 | 4 | 0.2 | 0.93 | 0.53 | 8300 | 9500 | 0.002 |
| 6702 | 15 | 21 | 4 | 0.2 | 0.94 | 0.585 | 6600 | 7600 | 0.0025 |
| 6703 | 17 | 23 | 4 | 0.2 | 1 | 0.66 | 5000 | 6700 | 0.0025 |
| 6704 | 20 | 27 | 4 | 0.2 | 1.04 | 0.73 | 5000 | 5700 | 0.0045 |
| 6705 | 25 | 32 | 4 | 0.2 | 1.1 | 0.84 | 4000 | 4600 | 0.005 |
| 6706 | 30 | 37 | 4 | 0.2 | 1.14 | 0.95 | 3300 | 3800 | 0.006 |
Deep Groove Ball Bearings Widely used in various industries,
our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied
then it proves our worth well. Customers are always given quick support.
