Miniature Flanged Extended Bearings

Product Description

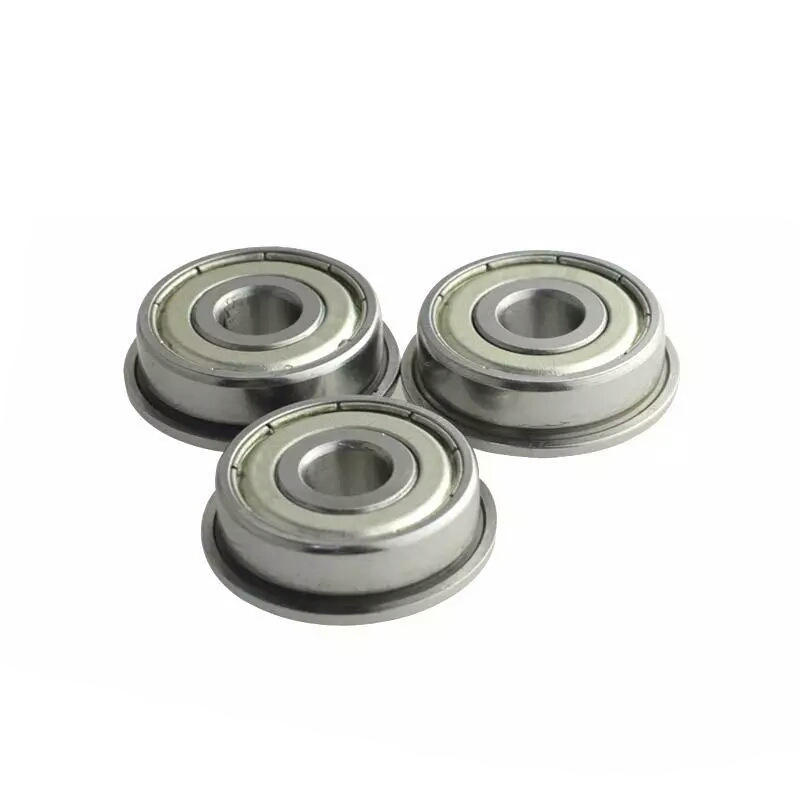

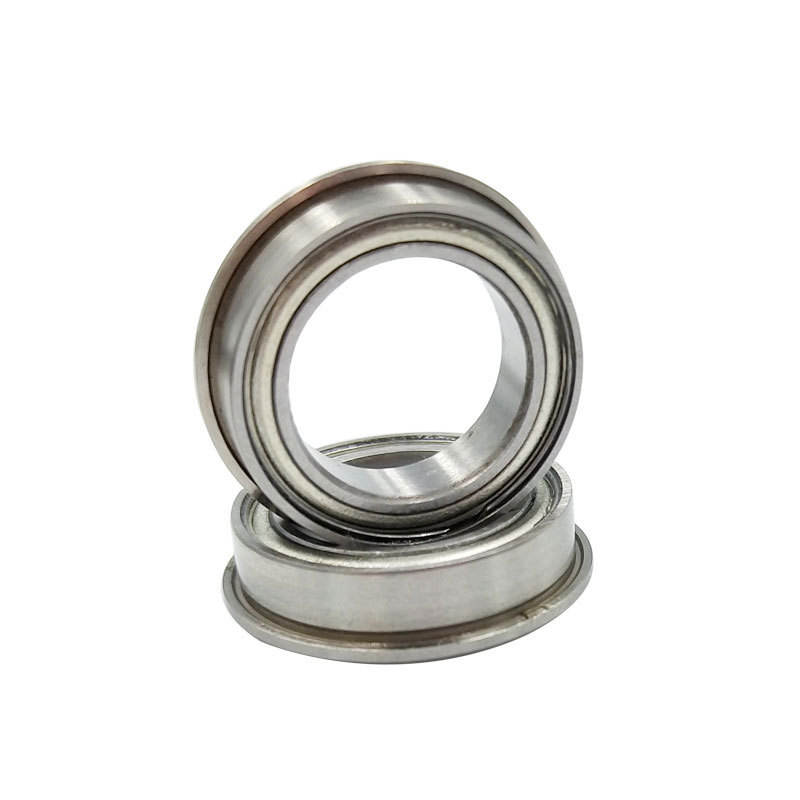

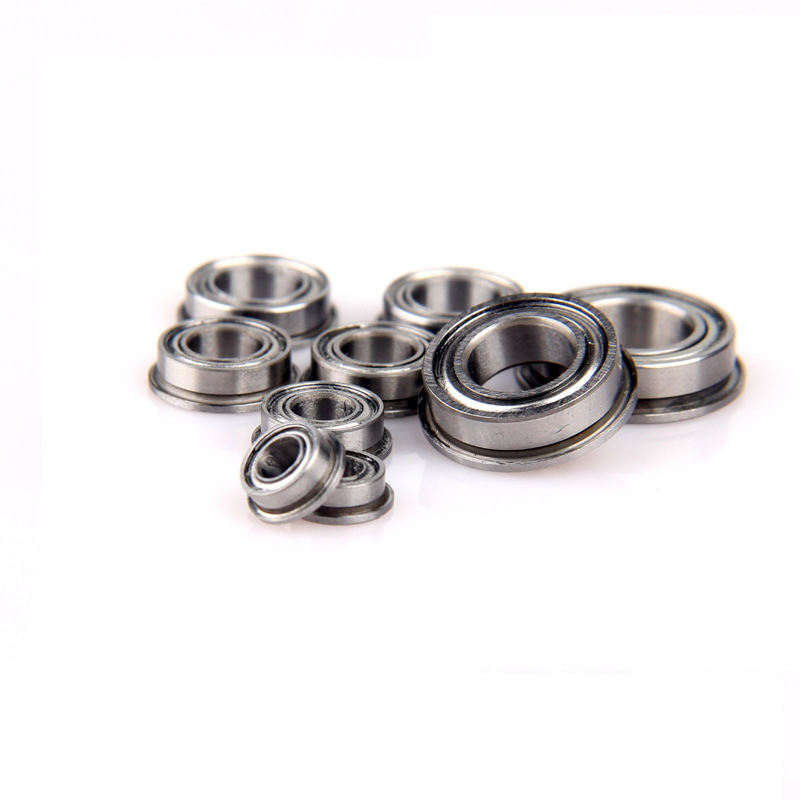

"Flanged Extended Inner Ring Bearings

Inch series for shaft sizes from 0.0469″ to 0.3125″

Chrome steel and stainless steel

Flanged extended inner ring bearings have an inner ring that is wider than the outer ring by 0.0312″ (0.0156″ on each side) and a flange on the outer ring for locating the bearing in a housing. Available in SAE52100 chrome steel but more usually supplied in AISI440C stainless steel, these deep groove radial flanged extended inner ring bearings can withstand heavy radial loads and moderate thrust loads in both directions.

Inquire Now

Product Details

60 Series Deep Groove Ball Bearings

Deep Groove Ball Bearings

Metric Miniature Flanged Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bore	O.D.	Flange	r.	Open Bearing				Shielded Bearing
		O.D.	min.	Outer	Inner	Flange	LILY Ref.	Outer	Inner	Flange	LILY Ref.
		mm	mm	Width	Width	Width	LILY Ref.	Width	Width	Width	LILY Ref.
0.0469	0.1562	0.203	0.1	0.0625	0.0937	0.013	FRW0	0.0937	0.125	0.031	FRW0ZZ

0.055	0.1875	0.234	0.1	0.0781	0.1094	0.023	FRW1	0.1094	0.1406	0.031	FRW1ZZ

0.0781	0.25	0.296	0.1	0.0937	0.125	0.023	FRW1-4	0.1406	0.1719	0.031	FRW1-4ZZ

0.0937	0.1875	0.234	0.1	0.0625	0.0937	0.018	FRW133	0.0937	0.125	0.031	FRW133ZZ
0.0937	0.3125	0.359	0.15	0.1094	0.1406	0.023	FRW1-5	0.1406	0.1719	0.031	FRW1-5ZZ

0.125	0.25	0.296	0.1	0.0937	0.125	0.023	FRW144	0.1094	0.1406	0.031	FRW144ZZ
	0.3125	0.359	0.1	0.1094	0.1406	0.023	FRW2-5	0.1406	0.1719	0.031	FRW2-5ZZ
	0.375	0.422	0.15	0.1094	0.1406	0.023	FRW2-6	0.1406	0.1719	0.031	FRW2-6ZZ
	0.375	0.44	0.3	0.1562	0.1875	0.03	FRW2	0.1562	0.1875	0.03	FRW2ZZ

0.1562	0.3125	0.359	0.1	0.1094	0.1406	0.023	FRW155	0.125	0.1562	0.036	FRW155ZZ

0.1875	0.3125	0.359	0.1	0.1094	0.1406	0.023	FRW156	0.125	0.1562	0.036	FRW156ZZ
	0.375	0.422	0.1	0.125	0.1562	0.023	FRW166	0.125	0.1562	0.031	FRW166ZZ
	0.5	0.565	0.3	0.1562	0.1875	0.042	FRW3	0.196	0.2273	0.042	FRW3ZZ
	0.5	0.565	0.3	0.196	0.2273	0.042	FRW3 W19

0.25	0.375	0.422	0.1	0.125	0.1562	0.023	FRW168	0.125	0.1562	0.035	FRW168ZZ
	0.5	0.547	0.15	0.125	0.1562	0.023	FRW188	0.1875	0.2188	0.045	FRW188ZZ
	0.625	0.69	0.3	0.196	0.2273	0.042	FRW4	0.196	0.2273	0.042	FRW4ZZ

0.3125	0.5	0.547	0.15	0.1562	0.1875	0.031	FRW	0.1562	0.1875	0.031	FRW1810ZZ
0.3125	0.5	0.547	0.15	0.1562	0.1875	0.031	1810	0.1562	0.1875	0.031	FRW1810ZZ

Deep Groove Ball Bearings

Deep Groove Ball Bearings Widely used in various industries, our bearings meet the requirements of your project！

60 Series Deep Groove Ball Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.
Customers are always given quick support.

Deep Groove Ball Bearings
